S&M Dagger Frame
S&M Dagger Frame
S&M Dagger Frame
S&M Dagger Frame
S&M Dagger Frame
S&M Dagger Frame
S&M Dagger Frame
S&M Dagger Frame
S&M Dagger Frame

S&M Dagger Frame

Regular price
$395.99
Regular price
Sale price
$395.99
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

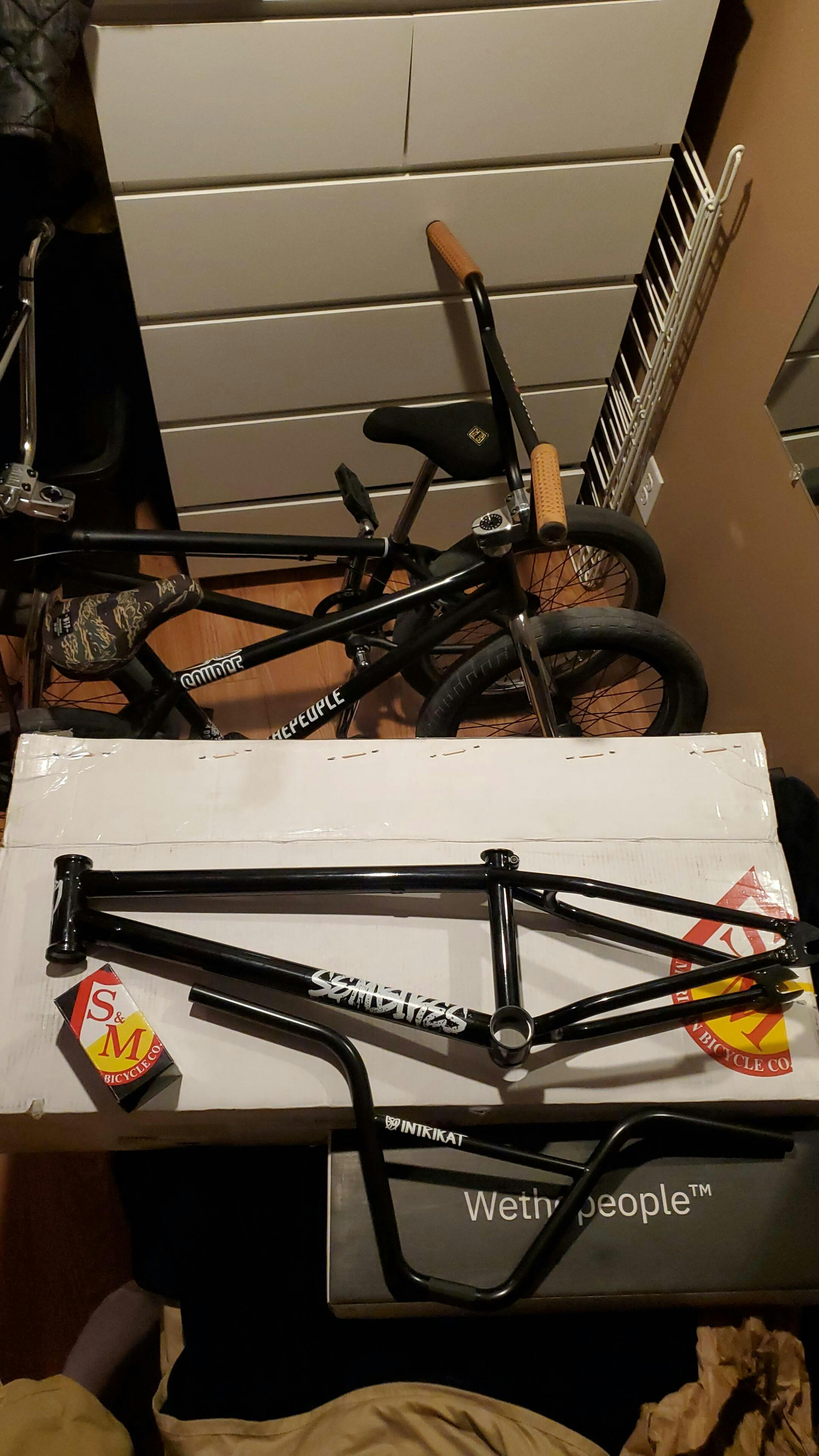

Our Ultra-Responsive Park Frame. w/ a low StandOver & BB, 75.3° head angle & short rear end w/ built in chain tensioners, the Dagger is compact & nimble. Highest quality possible & Made in the USA in Santa Ana, CA.

TOP TUBE LENGTHS:

19″, 19.5″, 20.5″, 20.75″ & 21″

REAR END LENGTH:

12.8″ – 13.6″

HEAD TUBE ANGLE:

75.3°

HEAD TUBE STYLE:

Integrated (45°/45°)

SEAT TUBE ANGLE:

71°

SEAT CLAMP:

Integrated

SEAT POST SIZE:

1″ (25.4mm)

BB HEIGHT:

11.6″

BB STYLE:

Mid

STANDOVER HEIGHT:

7.25″

BRAKE MOUNTS:

Thread-On 990 (mounts sold separately)

DROPOUTS:

14mm Slot, Integrated Chain Tensioners

GYRO TABS:

Removable

WEIGHT:

20.5”:    4.90lbs
20.75”:  4.95lbs
21”:       5.00lbs

TUBESET:

Double-Butted True Temper 4130 CrMo
